Episode 0x01: Introduction

Table of Contents

Why Run a Home Server/Home Lab?

You might wonder why someone would bother running a home server or home lab. Here are my key reasons:

  • Learning and Exploration: It’s a great opportunity to learn and tinker with technology.
  • Fun: The process itself is enjoyable!
  • Safety: I can experiment without worries. If something goes wrong, I can simply wipe everything clean and start over. This is much safer than accruing unexpected costs in the cloud.
  • Cost-Effective: Except for the initial investment in hardware, it’s essentially free compared to ongoing cloud service fees.
  • Data Ownership: I have complete control over my data; it’s not shared with anyone else.

Your motivations might vary, but if your only goal is to host a simple blog like this one, you can probably achieve that with a single click using various online services.

Prerequisites for Setting Up a Home Server

If you want to set up a home server similar to mine, here’s what you will need:

Hardware

First, you’ll need a spare computer that you don’t mind using as a dedicated server. If you plan to keep it running constantly, then power consumption becomes a critical factor.

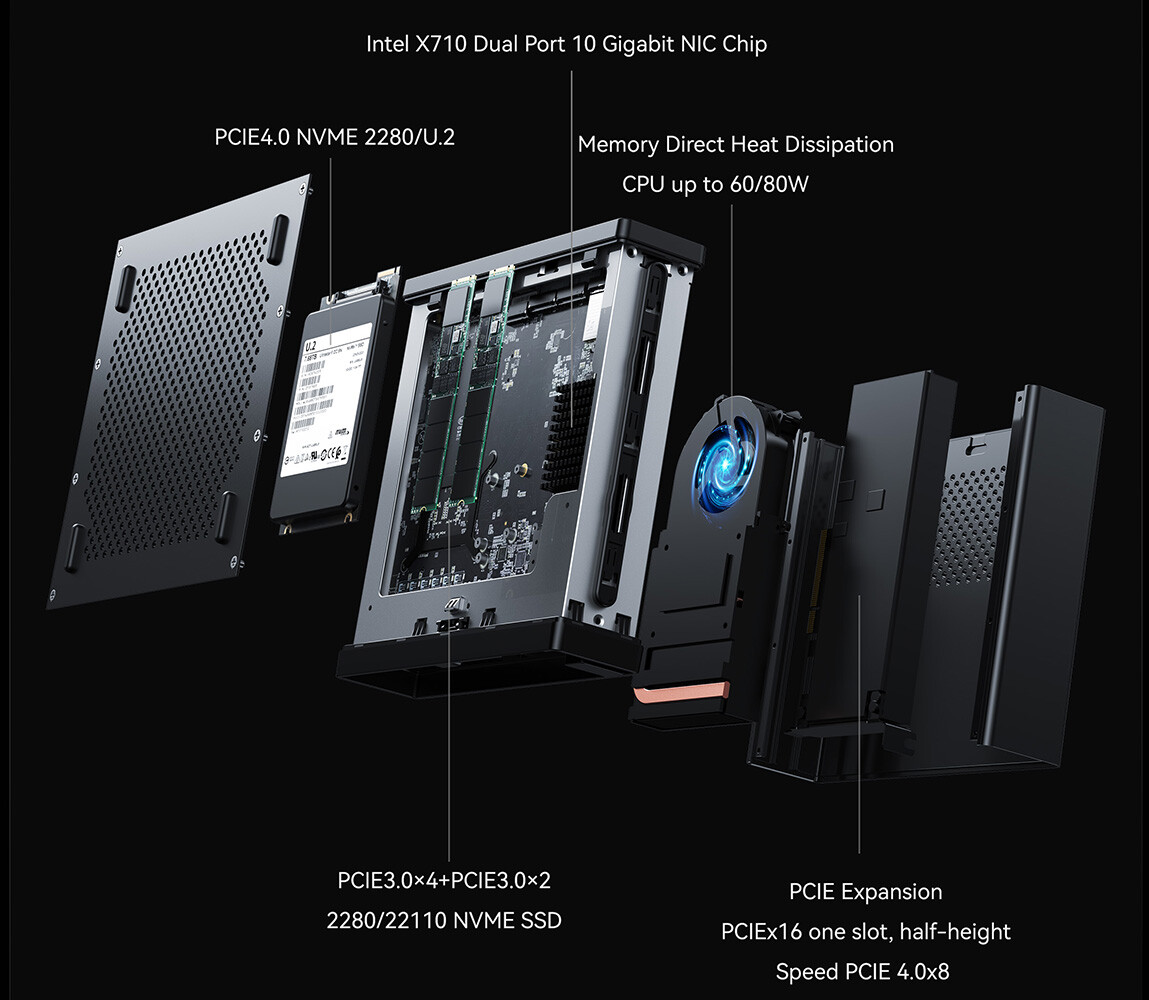

After some research, I chose the MS-01 Minisforum with these specifications:

  • Intel Core i9-13900H
  • 32 GB DDR5 Memory
  • 1 TB SSD

PC

This is a robust machine with low power consumption. However, other hardware configurations will sure work.

Domain

Next, you need a registered domain name. If not obvious!, I own geekembly.com, which I use to host my applications.

ISP

Your Internet Service Provider (ISP) must allow you to forward traffic to your private network, typically done using port-forwarding on your modem.

However, if you are behind a Carrier-Grade NAT (CGNAT) like I am, simple IPv4 port-forwarding won’t work since your IP is shared with others. In my case, Vodafone allowed me to use IPv6 host exposure after I contacted them. It’s not IPv4, but it works.

VPS

Though the goal is to self-host, I needed a small VPS (Virtual Private Server) as well. Before you point out the contradiction, let me explain.

Due to my inability to forward IPv4 traffic, I had two choices: stick with IPv6 or rent a VPS to tunnel IPv4 traffic to my exposed IPv6 services. Sticking with IPv6 wasn’t feasible for me because:

  • After a week of attempts, I failed to configure a dual-stack Kubernetes cluster properly. This surely have been a skill issue!
  • Even with a proper setup, GitHub (especially its Webhooks) only supports IPv4, as discussed here.

Thus, I opted for a more straightforward solution: renting a $3/month droplet from Digital Ocean. Traffic to geekembly.com passes through this VPS and is forwarded to my server.

Design Overview

We are going to set up a Kubernetes cluster on a home server, isolate it from other local devices, and make it accessible to the public. Here’s the strategy we’ll be using:

  1. Proxmox Installation: We will install Proxmox on our server. Proxmox is a powerful open-source virtualization management solution.
  2. Network Bridging: We’ll then bridge Proxmox to the Vodafone modem to ensure connectivity.
  3. Virtual Networks (VNETs): Using pfSense, we will create VNETs to isolate the Kubernetes network from our other devices.

Below is a diagram that shows how our home server will be accessed through the Internet:

Network

Stay tuned for the next part: Proxmox! 🚀
